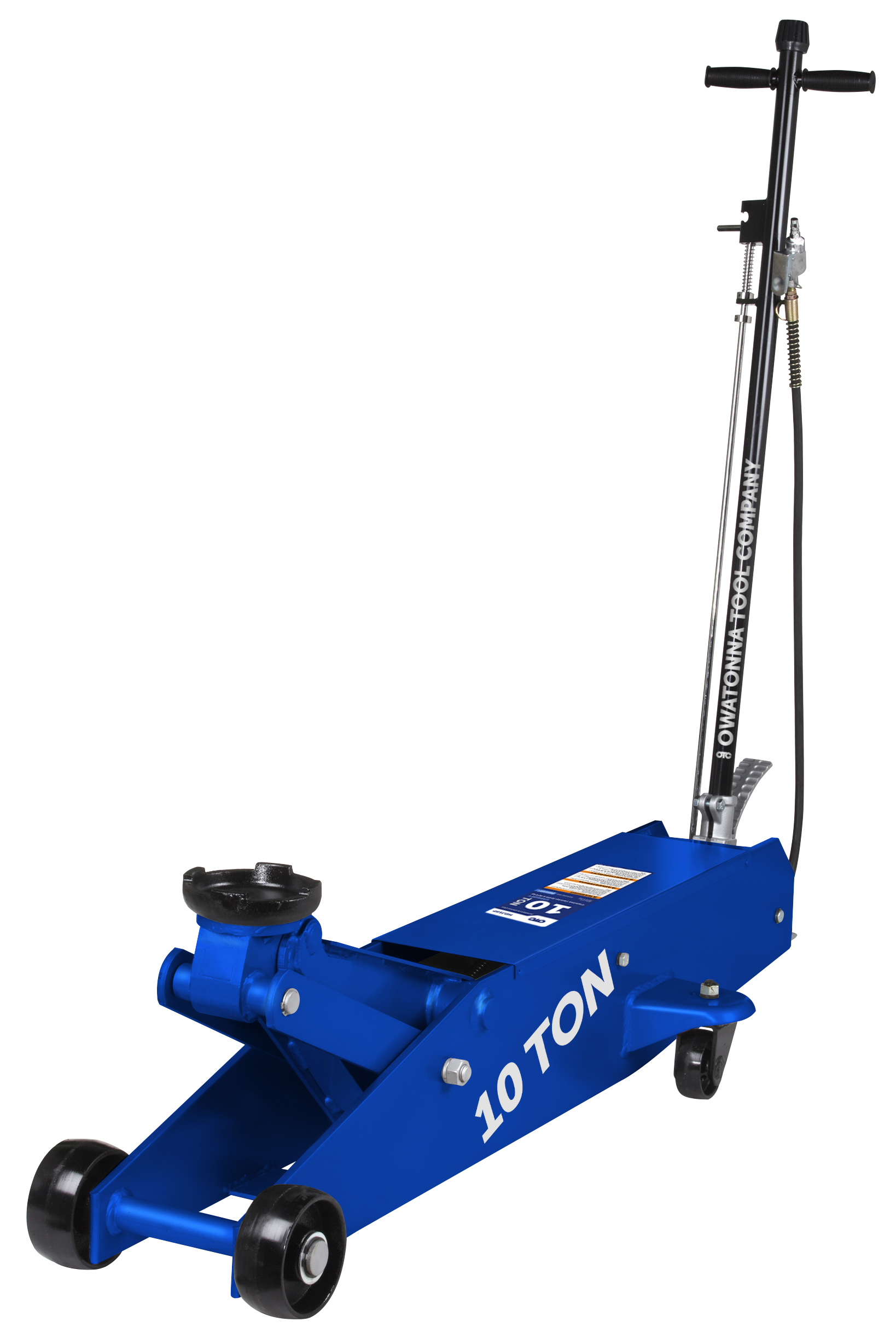

10 Ton Air / Hydraulic Service Jack

OTC's HDJ10P is a 10-ton capacity service jack that brings the versatility of air-assist operation to your shop’s lifting tasks. HDJ10P has rugged steel frame members. Spring-loaded handle may be locked in three positions, from horizontal to vertical. The HDJ10P from OTC is the ideal size for heavy duty lifting jobs such as vocational vehicles, highway maintenance, delivery and service fleets, bucket trucks, school buses and community transit vehicles. OTC's HDJ10P is easy to maneuver. A foot pedal quickly positions the saddle to the lift point. Connects to shop air supply for effortless lifting of heavy loads. Cycle tested design for a long life of professional duty.

Ideal size for vocational vehicles, bucket trucks, school buses and larger vehicles.

  • 10-ton capacity
  • Air pressure: 80–120 PSI
  • Lifting range: 6-3/8" to 22"
  • Reach: 106.2"
  • Saddle: 6" dia., round
  • Frame height: 9.8"
  • Handle length: 45.4" 3-position with lock and release controls
  • Floor space: 18.9" x 60.8"
  • Casters: 4; 5.6" fixed front (2), 3.6" mid-body swivel (2)

Meets all 5 ASME PASE-2019 safety standards for service jacks

Limited Lifetime Warranty

The Tabs

Overview
This product can expose you to chemicals including Titanium dioxide (airborne, unbound particles of respirable size), which is known to the State of California to cause cancer, and Titanium dioxide (airborne, unbound particles of respirable size), which is known to the State of California to cause birth defects or other reproductive harm. For more information for to www.P65Warnings.ca.gov.
SKU:
HDJ10P
Categories:
Shop Equipment
Service Jacks
Includes:
HDJ10P a 10 ton capacity - air assisted service jack
1-piece handle with spring locking mechanism
OTC Owners manual for service jacks
Supersedes P/N's:
1511B
Specs
Product Specs:
Capacity | 10 Ton lifting capacity
Air pressure | 80 - 120 PSI
Lifting | 6-3/8" to 22"
Reach | 106.2"
Saddle | 6" dia., round
Frame Height | 9.8"
Handle length | 45.4" 3-position with lock and release controls
Floor space| 18.9" x 60.8"
Casters | 4; 5.6" fixed front (2), 3.6" mid-body swivel (2)
Features:
Heavy duty hydraulic service for garages, equipment dealers, commercial service and more.
Welded hydraulic pump and cylinder construction provides increased strength and leak protection
Chrome plated ram for additional rust resistance
Wiper seals protect hydraulic system from contaminants
Front wheels with roller bearings and ball bearing-mounted rear caster wheels provide stability and easy maneuvering
Overload and bypass safety valves prevent use beyond rated capacity ad over extension of the ram
Handle can be locked in three positions from horizontal to vertical and has independent release knob
Uses shop air supply for lifting assistance
OTC Owners Manual for service jacks with training (operating) instructions
Product Dimensions:
60 × 18 × 10 in
Product Weight:
293 lb
Shipping Weight:
328 lb
