20 Ton Service Jack

Coming Soon
Keep Me Updated
Title:
20 Ton Service Jack

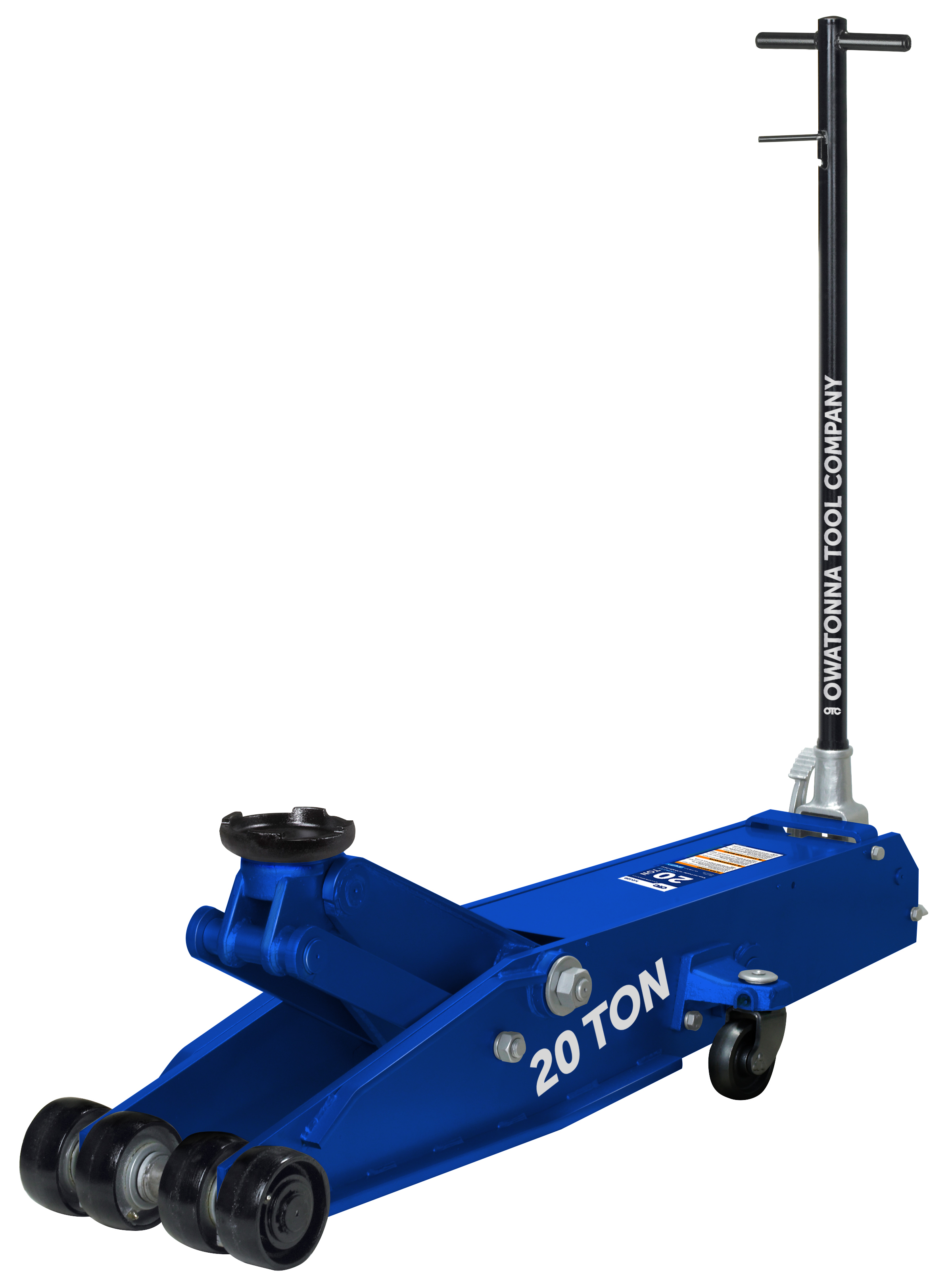

OTC’s HDJ20 is a 20-ton capacity service jack with a low-profile stance and extended height to add versatility. Large metal wheels and swivel casters roll effortlessly on internal bearings. Foot pedal for quick no load approach.

Ideal size for safely lifting heavy duty vehicles, construction, fleet, and agricultural equipment, mass transit buses, loaded vocational vehicles and more.

Cycle-tested design for a long life of professional duty. Meets all 5 ASME PASE-2019 safety standards for service jacks.

Limited Lifetime Warranty


Specifications:

  • 20-ton capacity
  • Lifting range: 7-1/2" to 23.8"
  • Reach: 110.4"
  • Saddle: 6-1/2" dia., steel crown
  • Frame height: 10.2"
  • Handle length: 47-1/2", 3-position spring-assisted locking
  • Floor space: 18-1/8" x 61-3/8"
  • Casters: 6; 4 front fixed, 2 mid-body swivel

The Tabs

Overview
This product can expose you to chemicals including Titanium dioxide (airborne, unbound particles of respirable size), which is known to the State of California to cause cancer, and Titanium dioxide (airborne, unbound particles of respirable size), which is known to the State of California to cause birth defects or other reproductive harm. For more information for to www.P65Warnings.ca.gov.
SKU:
HDJ20
Categories:
Shop Equipment
Service Jacks
Includes:
HDJ20 20 Ton capacity service jack
1 piece handle
OTC Owner's Manual
Supersedes P/N's:
1512
Specs
Product Specs:
Capacity | 20-ton
Lifting range | 7-1/2" to 23.8"
Reach | 110.4"
Saddle | 6-1/2" dia., steel crown
Frame height | 10.2"
Handle length | 47-1/2", 3-position spring-assisted locking
Floor space | 18-1/8" x 61-3/8"
Casters | 6; 4 front fixed, 2 mid-body swivel
Features:
Reinforced Chassis, Caster Wings and Power Unit housing for true heavy duty lifting jobs
Bypass Valves prevent overload and ram over-extension
Enhanced release valve action for controlled lowering
Front wheel configuration provides maximum load stability
Large saddle diameter aides easier contact with vehicle lift point
Multi-lingual Owner's Manual with training (operating) instructions
Product Dimensions:
71.5 × 21.5 × 17 in
Product Weight:
631 lb
Shipping Weight:
643 lb
