22 Ton Jack Stands

Title:
22 Ton Jack Stands

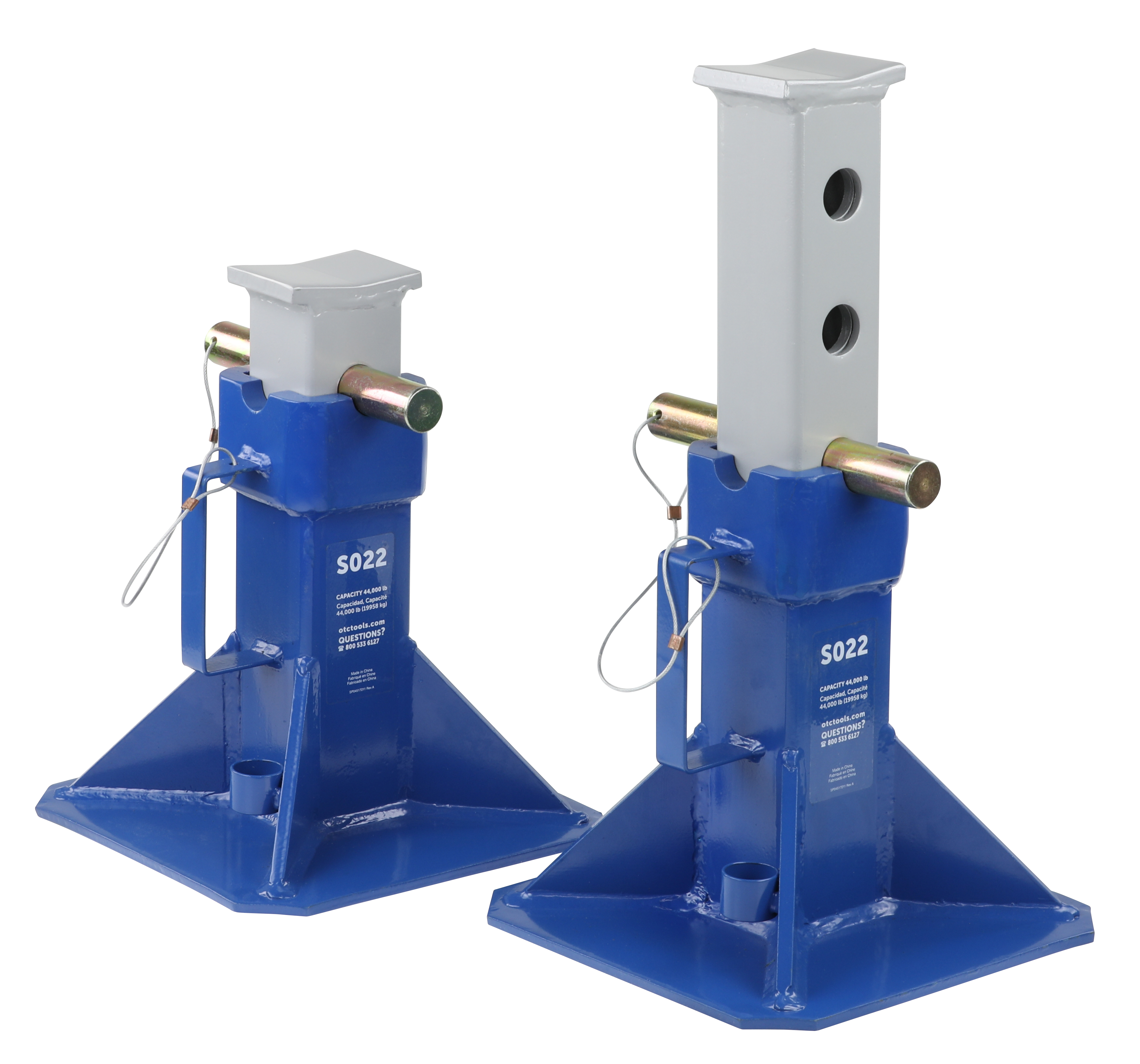

S022 is a pair of 22 Ton capacity pin style stands. The fully steel construction consists of a large, 11” flat square base welded to a square tube and steel support column. Rated to safely hold 44,000 lbs., the flat base resists sinking into concrete, asphalt and other soft surfaces. A single pin-style adjustment holds the support column in place with 3 height adjustment positions. A braided steel cable secures the extra-large pin to the jack, preventing it from being lost or misplaced.

The S022 - 22 Ton capacity stands from OTC are the ideal size for safely holding heavy duty vehicles and equipment for tire, wheel, brake and underbody maintenance service. S022 is an excellent compliment to OTCs 20 and 22 ton capacity service and under axle jacks.

Sold as a pair.

Ideal size for safely lifting heavy duty vehicles.

Specifications:

  • Capacity: 22-ton
  • Max. height: 19-7/8”
  • Min. height: 13-7/8”
  • Footprint: 11” square, flat base, flat for maximum ground contact
  • Adjustment: Pin-style; 3 slots in 3” intervals
  • Saddle: 3” x 3-3/4” V-notch

Meets both ASME PASE-2019 safety standards for jack stands.

Limited Lifetime Warranty.

The Tabs

Overview
This product can expose you to chemicals including Titanium dioxide (airborne, unbound particles of respirable size), which is known to the State of California to cause cancer, and Titanium dioxide (airborne, unbound particles of respirable size), which is known to the State of California to cause birth defects or other reproductive harm. For more information for to www.P65Warnings.ca.gov.
SKU:
S022
Categories:
Shop Equipment
Stands
Includes:
One pair of 22 Ton Capacity Steel Stand Bases
One pair of 22 Ton capacity steel support tubes
Two solid steel stand pins
Two braided steel cable with d-ring and security pin
OTC Owners manual for Stands
Supersedes P/N's:
1780
Specs
Product Specs:
Capacity | 22-ton
Max. height | 19-7/8”
Min. height | 13-7/8”
Footprint | 11” square, flat base, flat for maximum ground contact
Adjustment | Pin-style; 3 slots in 3” intervals
Saddle | 3” x 3-3/4” V-notch
Features:
Meets ASME PASE-2019 safety standards
Limited Lifetime Warranty
Ideal size for safely lifting heavy duty vehicles.
Flat base welded to a square tube accommodates a square steel support column
Steel tube and support column has 3 positions for height adjustment
Durable baked enamel finish resists corrosion
Clear multilingual safety and capacity markings
Multi-Lingual OTC Owners Manual for Stands with training (operating) instructions
Product Dimensions:
13.9 × 10.9 × 10.9 in
Product Weight:
40.8 lb
Shipping Weight:
80 lb
