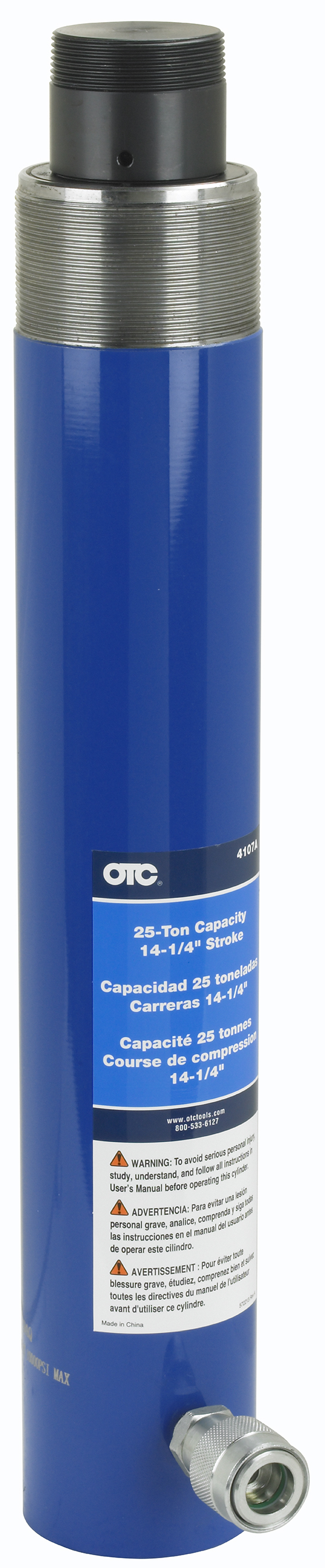

25-ton RAM with Half Coupler, Long

Title:
25-ton RAM with Half Coupler, Long

This single-acting, spring-return ram has a capacity of 25 tons and a maximum working pressure up to 10,000 PSI; 2 to 1 safety factor on material yield; designed and tested to meet ANSI B30.1. Standard stroke length of 14-1/4", this compact ram requires a minimum of mounting space. The ram features a threaded ram collar and internal base thread to simplify mounting. Also, it has a threaded piston rod end. OTC's design ensures positive, leak-resistant sealing throughout all pressure ranges, yet full piston return characteristics are maintained. Additional bearing surface has been designed into this unit, to effectively resist the punishing stress exerted by off-center loads.

  • Capacity: 25 tons
  • Stroke: 14-1/4"
  • Collapsed height: 21-3/8"
  • Extended height: 35-5/8"
  • Oil capacity (cu.in.): 73.5

The Tabs

Overview
SKU:
4107A
Categories:
Shop Equipment
Hydraulic Pumps and Rams
Supersedes P/N's:
4107
Specs
Features:
Single-acting, spring-return ram
Maximum working pressure up to 10,000 PSI
2:1 safety factor on material yield
Designed and tested to meet ANSI B30.1
Compact design requires minimum mounting space to deliver maximum force
Threaded ram collar and internal base thread to simplify mounting
Product Dimensions:
24 × 5.25 × 8.5 in
Product Weight:
43 lb
