3.5 Ton Service Jack

Coming Soon
Keep Me Updated
Title:
3.5 Ton Service Jack

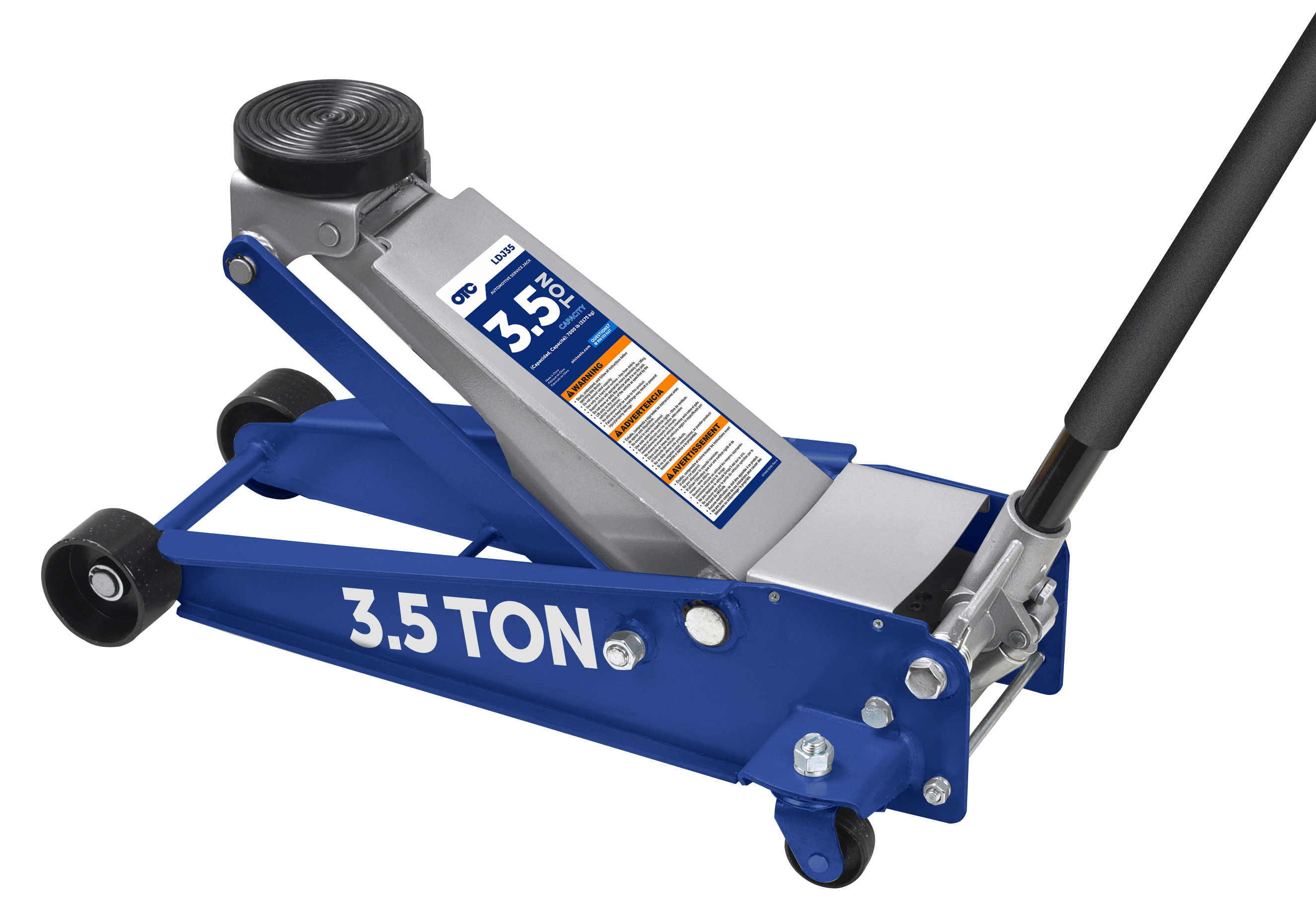

The LDJ35 is a 3-1/2-ton capacity service jack that is ideal for both a large automotive service center or a one-person shop. Under load, the dual-stage hydraulic unit can reach maximum height in 7 pumps. An extra wide lifting range increases the versatility for shops. A padded spring-loaded handle rapidly returns after each pump, allowing techs to lift the vehicle faster with less effort. Heavy-duty rolled edge construction adds strength and resists twisting for increased safety. Cycle tested design for a long life of professional duty.

Ideal size for full-size pickups, SUVs and loaded tradesmen vehicles.

Specifications:

  • 3.5-ton capacity
  • Lifting range: 5.2" to 21.9"
  • Reach: 78.5"
  • Saddle: 6" dia., flat steel, rubberized, pinned to lifting arm
  • Frame height: 6.25"
  • Handle length: 50" spring-loaded padded lower handle
  • Floor space: 14.5" x 28.5"
  • Casters: 4; 3.15" front fixed (2), 2.5" rear swivel (2)

Meets all 5 ASME PASE-2019 safety standards for service jacks

Limited Lifetime Warranty

The Tabs

Overview
This product can expose you to chemicals including Titanium dioxide (airborne, unbound particles of respirable size), which is known to the State of California to cause cancer, and Titanium dioxide (airborne, unbound particles of respirable size), which is known to the State of California to cause birth defects or other reproductive harm. For more information for to www.P65Warnings.ca.gov.
SKU:
LDJ35
Categories:
Shop Equipment
Service Jacks
Includes:
3-1/2 Ton Service Jack
2 Piece Handle with pad
OTC Owner's Manual for Service Jacks
Supersedes P/N's:
1526A
Specs
Product Specs:
Capacity | 3.5-ton
Lifting range | 5.2" to 21.9"
Reach | 78.5"
Saddle | 6" dia., flat steel, rubberized, pinned to lifting arm
Frame height | 6.25"
Handle length | 50" spring-loaded padded lower handle
Floor space| 14.5" x 28.5"
Casters | 4; 3.15" front fixed (2), 2.5" rear swivel (2)
Features:
3-1/2 ton lifting capacity
Durable steel construction

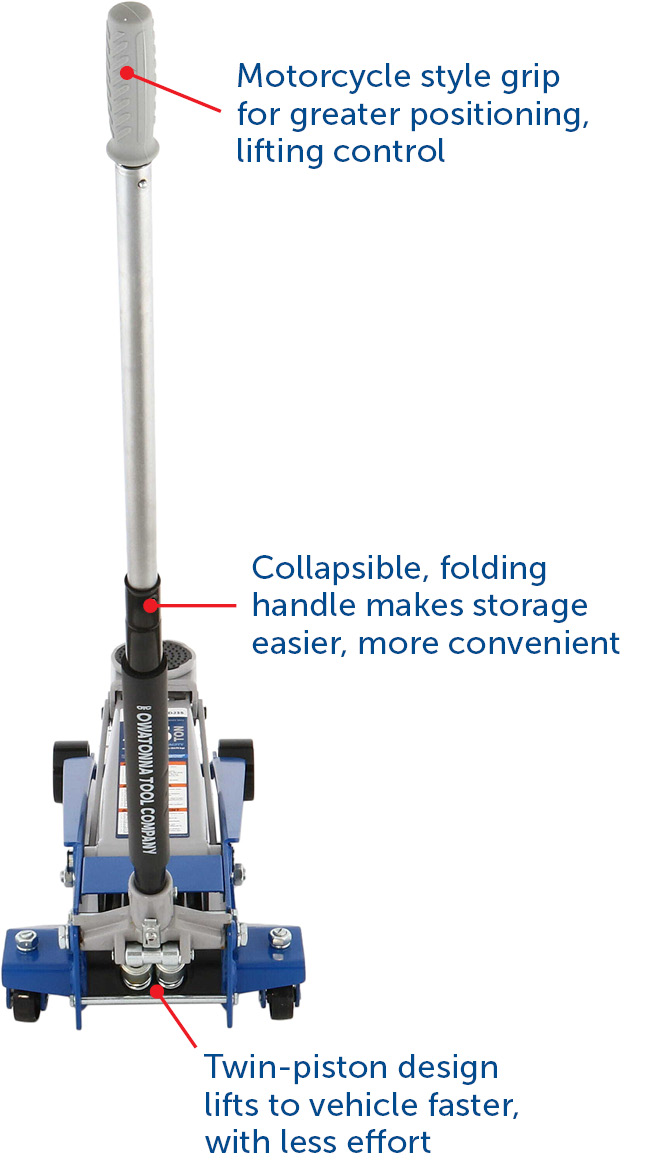

Dual pump design provides quick lift with maximum load
Clear multi lingual safety and capacity markings

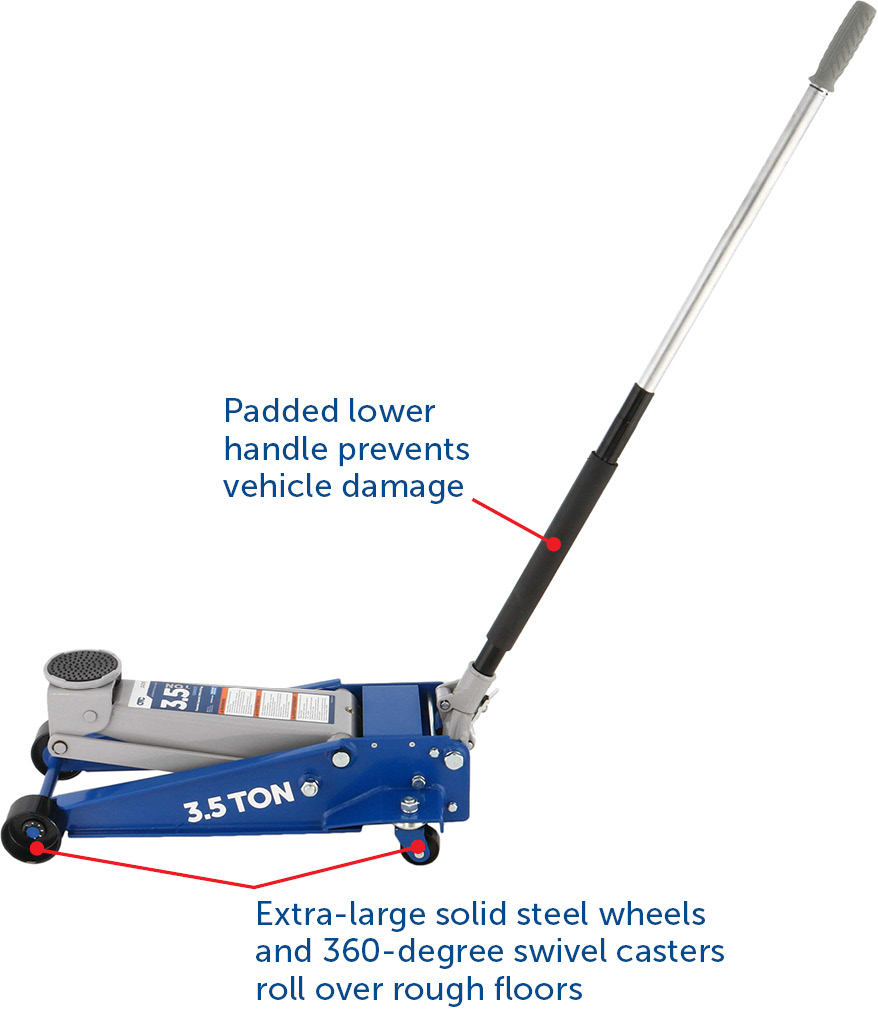

Pad on handle protects vehicle finish
Multi-Lingual Owners Manual with training (operating) inststructions
OTC Limited Lifetime Warranty
Product Dimensions:
28.5 × 14.5 × 6.25 in
Product Weight:
92 lb
Shipping Weight:
99 lb
