5 Ton Air / Hydraulic Service Jack

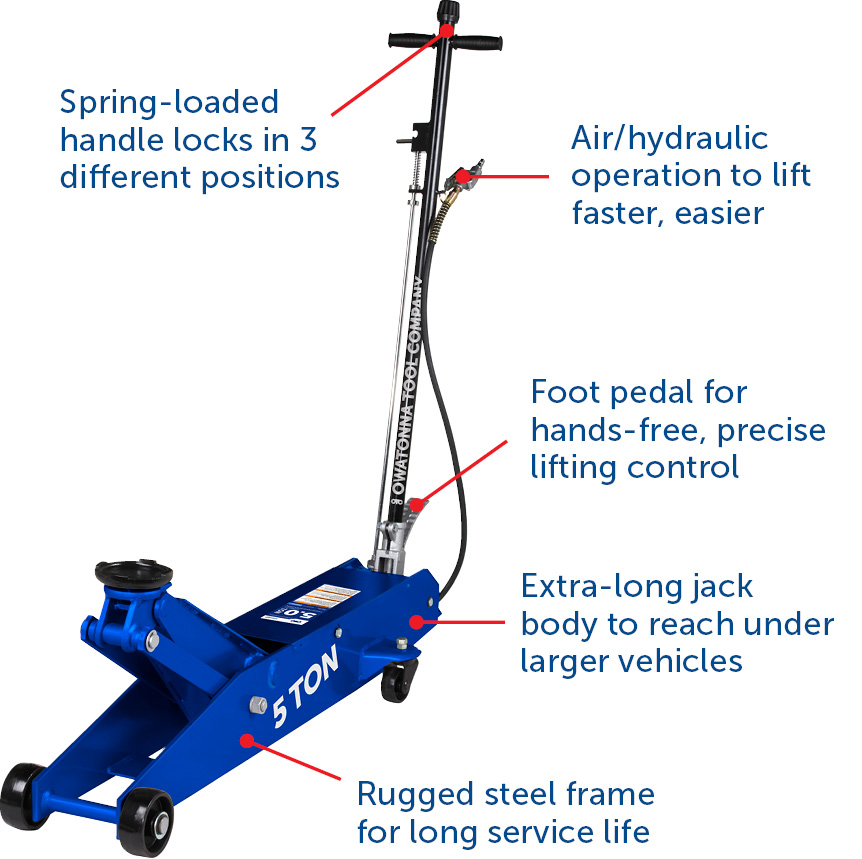

The HDJ5P is a long chassis, heavy duty 5-ton capacity, air-assisted hydraulic service jack. Rugged steel frame members ensure confident lifting service. Bearing-mounted rear swivel casters and front wheels with roller bearings make maneuvering and positioning the jack easy. Spring-loaded handle may be locked in three positions, from horizontal to vertical. Bring the versatility of air-assist operation to your shop’s lifting tasks with the OTC HDJ5P. Cycle tested design for a long life of professional duty.

Ideal size for lifting step vans, bucket trucks and smaller vehicles.

Specifications:

  • 5-ton capacity
  • Air pressure: 80–120 PSI
  • Lifting range: 5-7/8" to 22"
  • Reach: 87"
  • Saddle: 5.1" dia., round
  • Frame height: 7.5"
  • Handle length: 45.4" 3-position with lock and release controls
  • Floor space: 14.2" x 55.5"
  • Casters: 4; 4.4" fixed front (2), 2.8" mid-body swivel (2)

Meets all 5 ASME PASE-2019 safety standards for service jacks.

Limited Lifetime Warranty

The Tabs

Overview
This product can expose you to chemicals including Titanium dioxide (airborne, unbound particles of respirable size), which is known to the State of California to cause cancer, and Titanium dioxide (airborne, unbound particles of respirable size), which is known to the State of California to cause birth defects or other reproductive harm. For more information for to www.P65Warnings.ca.gov.
SKU:
HDJ5P
Categories:
Shop Equipment
Service Jacks
Includes:
HDJ5P 5 Ton cpapacity Long reach Air assisted hydraulic jack
1 - piece handle
OTC Owners manual for service jacks
Specs
Product Specs:
Capacity | 5-ton
Air Pressure | 80 - 120 PSI
Lifting range | 5-7/8" to 22"
Reach | 87"
Saddle | 5.1" dia., round
Frame height | 7.5"
Handle length | 45.4" 3-position with lock and release controls
Floor space| 14.2" x 55.5"
Casters | 4; 4.4" fixed front (2), 2.8" mid-body swivel (2)
Features:
Heavy duty hydraulic performance for garages, equipment dealers, commercial service and more
Welded hydraulic pump and cylinder construction provides increased strength and leak prevention
Chrome plated ram for additional rust resistance
Wiper seals protect hydraulic system from contaminants
Convenient foot pedal for no load lifts
Front wheels with roller bearings and ball bearing - mounted rear caster wheels provide stability and easy maneuverabilty
Overload and by-pass safety valves prevent use beyond the jacks rated capacity and over extension of the ram
Handle can be locked into one of three positions from horizontal to vertical and has independent release knob
Multi-lingual safety and capacity markings
OTC Owner's manual for service jacks with training (operating) instructions
Product Dimensions:
56 × 14.75 × 7.75 in
Product Weight:
196 lb
Shipping Weight:
222.6 lb
