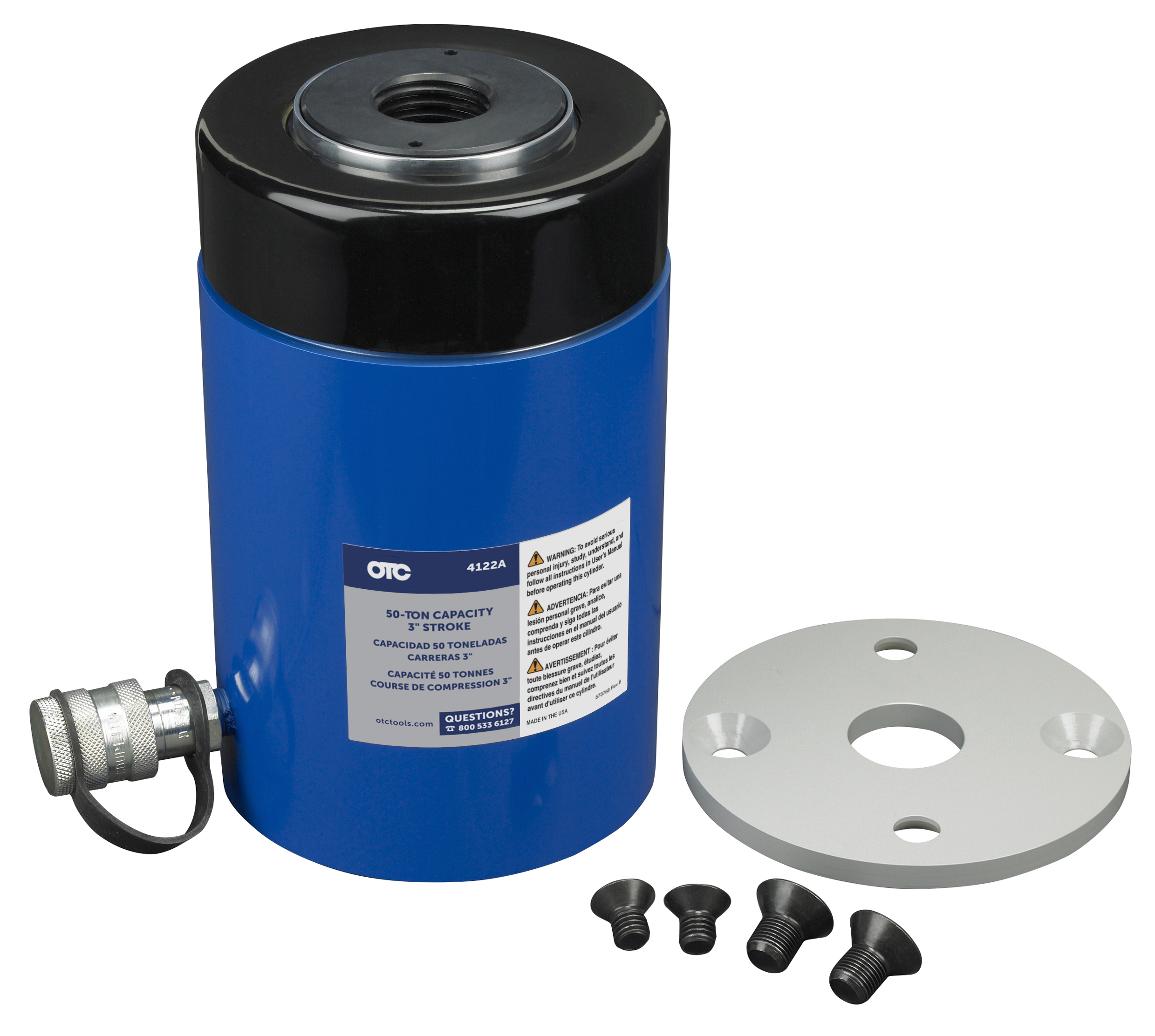

50-Ton Hollow Center Hydraulic Ram

Title:
50-Ton Hollow Center Hydraulic Ram

Center-hole ram is ideal for jobs that require a great deal of force and a relatively short stroke. Compared to the force it develops, the ram is lightweight, compact, and easy to handle, permitting its use in confined quarters. Center-hole feature allows extending jacking screws, cables, puller screws and more to be inserted through the ram.

The Tabs

Overview
This product can expose you to chemicals including TITANIUM DIOXIDE, which is known to the State of California to cause cancer. For more information for to www.P65Warnings.ca.gov.
SKU:
4122A
Categories:
Shop Equipment
Hydraulic Pumps and Rams
Includes:
Single-acting hydraulic ram
P/N 573810 threaded saddle
Protective base plate and bolts
Ram half coupler
Supersedes P/N's:
4122
Related/Accessory Products:
30 Ton Hollow Center Hydraulic Ram (w/ adapter)
17-1/2 Ton Hollow Center Hydraulic Ram (w/ adapter)
Specs
Product Specs:
Rated Capacity | 50 Ton
Stroke | 3"
Length | 10.27"
Diameter | 6.26"
Collar Thread | 6-12 UN X 2.0
Saddle Thread ID | 1 5/8” – 5 1/2 UNC-2B
Features:
Engineered for increased strength and durability and meets the ASME B30.1 standards
For use with Grip-O-Matic® pullers, push-pullers and shop presses
Product Dimensions:
9 × 6 × 13 in
Product Weight:
74 lb
