Heavy-Duty Gear Puller

Title:
Heavy-Duty Gear Puller

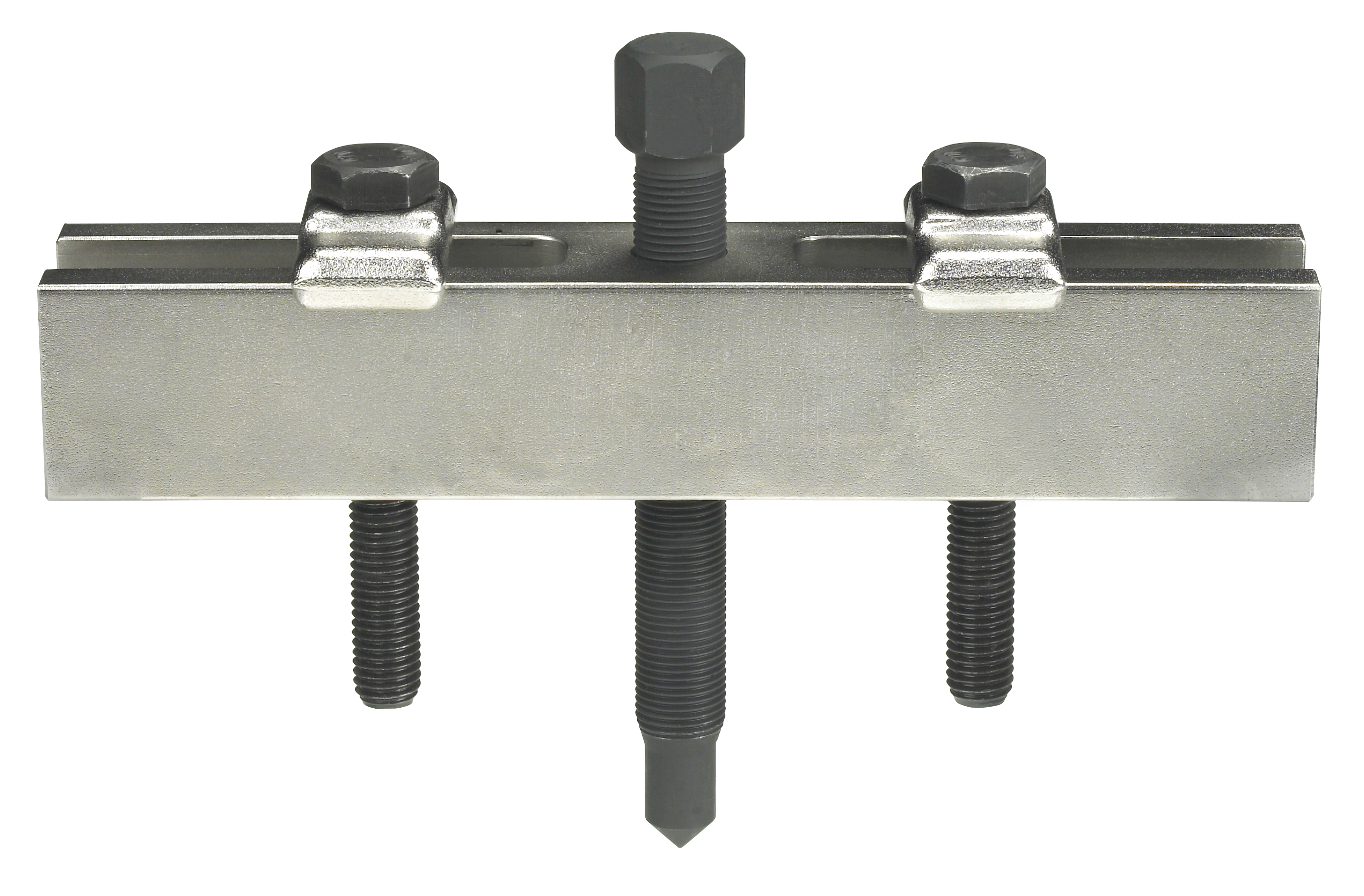

The OTC 6614 Heavy Duty Gear Puller will remove gears up to 7-1/4" in diameter, including most cam gears. Rated at 8 tons, this puller is stout enough for almost any heavy-duty application and includes a pair of metric bolts for most applications. The slimmer design of the cross block gives more room to set up in tight quarters.

The tempered steel, rust inhibitor-coated bolts are graded 10.9 and are sized M12x1.75" and are 90mm in length. Covered by OTC's Lifetime Warranty.

The Tabs

Overview
SKU:
6614
Categories:
Specialty Tools
Pullers
Push Pullers and Threaded Adapters
Engine
Includes:
1 Crossbar
1 Forcing Screw
2 Sliding Plates
2 Bolts
Specs
Features:
8-3/8" Crossbar rated to 8 Tons
Spread range: 2" to 7-1/4"
Can accommodate large bolt diameters - up to 5/8"diameter
Includes sliding plates to ensure smaller gear bolts up to 1/2" diameter are always centered
5-3/4" Forcing Screw threaded 5/8"-18 - has pulling reach of 3-1/4"
Forcing Screw has 3/4" Hex Drive
Treated to resist corrosion
Lifetime Warranty
Product Dimensions:
8.375 × 1.5 × 1.5 in
Product Weight:
4.22 lb
Shipping Weight:
4.4 lb
