Master Bolt Grip Set (Grade 8)

Title:
Master Bolt Grip Set (Grade 8)

• Multi-Purpose applications such as steering wheels, flywheels, harmonicﾠ balancers, pulleys and gears with tapped holes.

•ﾠIncludes special stepped bolts for 1990-2005 GM 3300-3800 V6 crankshaft pulleys.

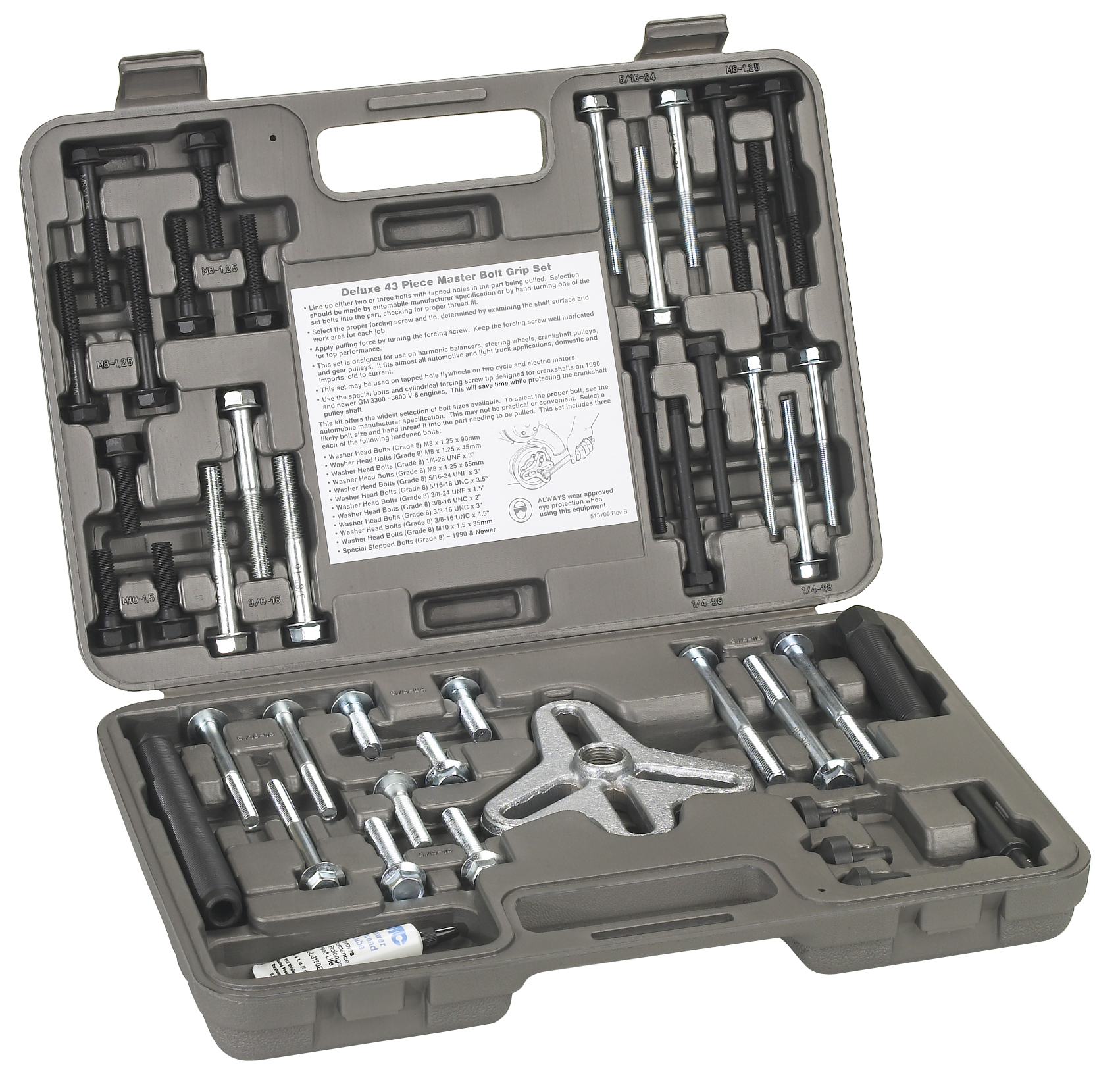

Contents of set:

• 4-way slotted puller yoke and 2 lengths of hardened "live-center" forcing screws - a set of 3 interchangeable forcing screw tips is included to optimize pressure and prevent "walking".

• Blow molded case to prevent spilling and each bolt size is molded into the storage compartment.

•ﾠ Three each of the following bolt sizes:

M8 x 1.25 x 90mm

M8 x 1.25 x 45mm

1/4-28 UNF x 3"ﾠ

M8 x 1.25 x 65mm

5/16-24 UNF x 3"ﾠ

5/16-18 UNC x 3.5"

3/8-24 UNF x 1.5"

3/8-16 UNC x 2"

3/8-16 UNC x 3"

3/8-16 UNC x 4.5"

M10 x 1.5 x 35mm

Special Stepped Bolts - 1990-2005

The Tabs

Overview
This product can expose you to chemicals including Titanium dioxide (airborne, unbound particles of respirable size), which is known to the State of California to cause cancer, and Titanium dioxide (airborne, unbound particles of respirable size), which is known to the State of California to cause birth defects or other reproductive harm. For more information for to www.P65Warnings.ca.gov.
SKU:
7793
Categories:
Specialty Tools
Engine
Pullers
Flange-Type Pullers
Specs
Product Dimensions:
16 × 7 × 11 in
Shipping Weight:
8.27 lb
