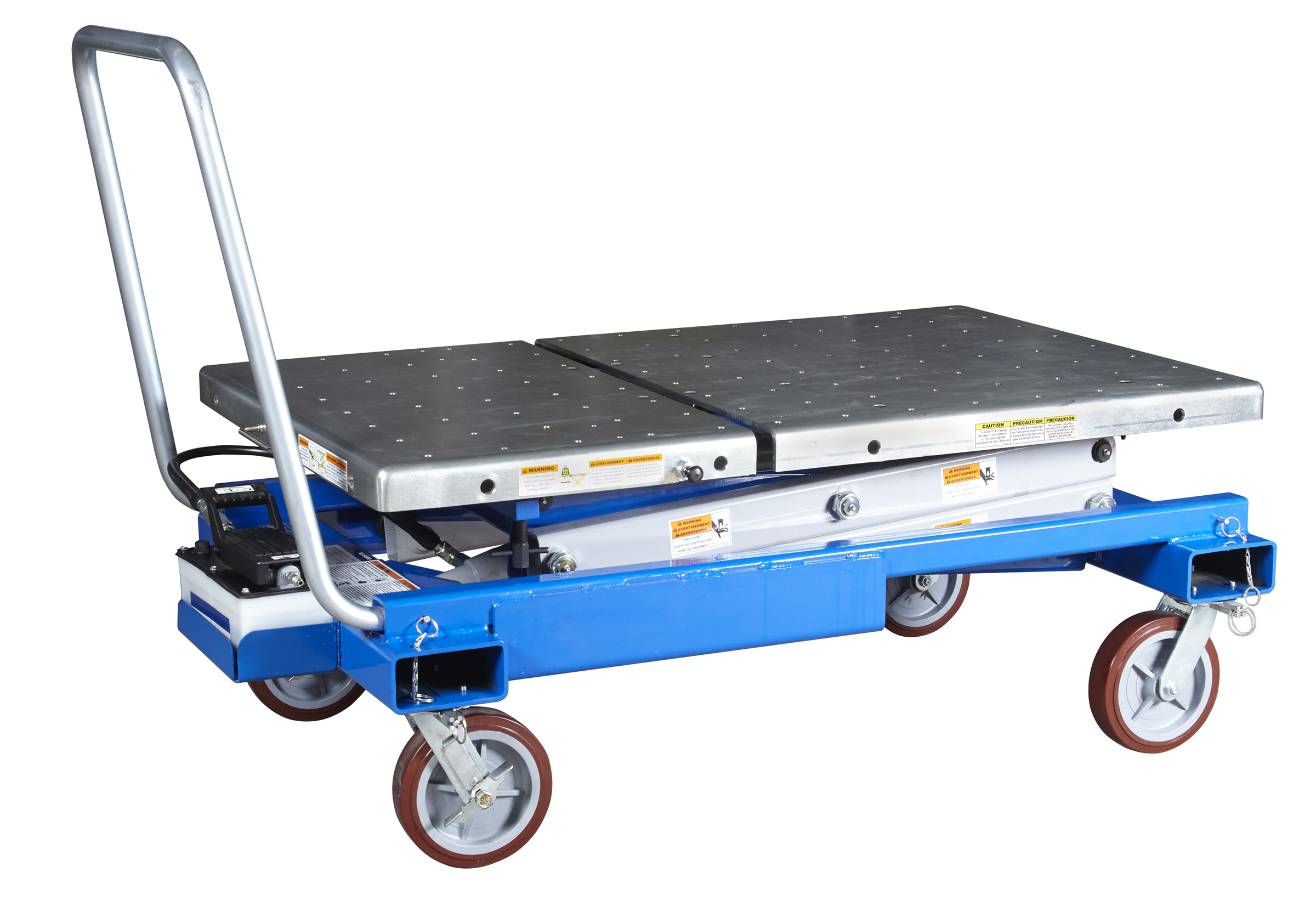

Powertrain Lift

Title:
Powertrain Lift

The sliding split table top design of this powertrain lift allows for separation of the engine/transmission assembly or hybrid engine/generator module, making service easier. The unique design also helps handle removal and installation of electric vehicle batteries, fuel tanks, suspension systems and other powertrain assemblies.

A generous ground clearance allows for floor crane access while a low collapsed height aids in servicing large components while still on the lift. The table tilts to help properly align components to the vehicle during installation and threaded holes in the tabletop accommodate future adapters and powertrains. 1,760-lb capacity.

 Similar to GM lift P/N GE-52200 and Honda lift P/N HON52200.

The Tabs

Overview
SKU:
5295
Categories:
Shop Equipment
Power Train Lifts
Includes:
Powertrain lift
Specs
Product Specs:
Lifting Capacity | 1,760 lbs
Lifting Height Range | 21.5” to 70.0"
Features:
The sliding split table top design allows for separation of the engine/transmission assembly or hybrid engine/generator module.
Uniquely designed to handle removal and installation of electric vehicle batteries, fuel tanks, suspension systems, and future powertrains.
Generous ground clearance for floor crane access.
Low collapsed height aids servicing large components while still on lift.
Tilting table provides alignment correction during vehicle installation.
Threaded holes in table to accommodate future adapters.
Product Dimensions:
62 × 38 × 44 in
Product Weight:
825 lb
Shipping Weight:
825 lb
